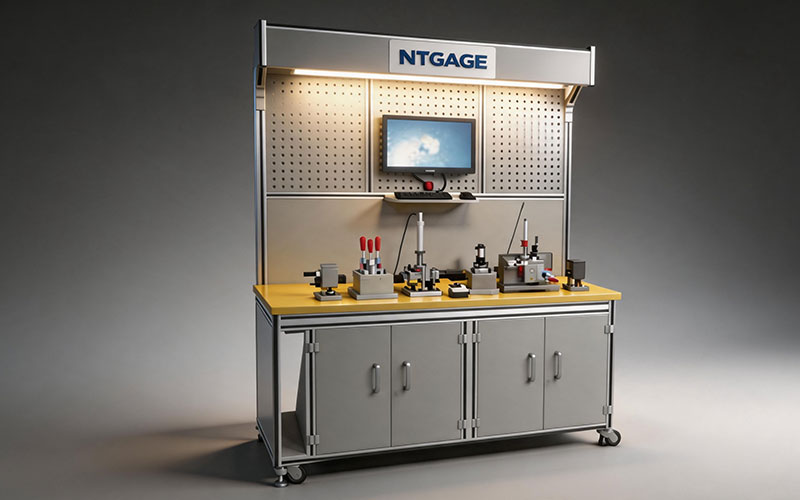

Shim Selecting Machine
Test Items
Motor hole depth
Motor height
Shim thickness
Shaft pump height after assembly
End-cover depth
Motor height
Shim thickness
Shaft pump height after assembly
End-cover depth
Product Features
1. Measures two types of workpieces and directly outputs matching clearance

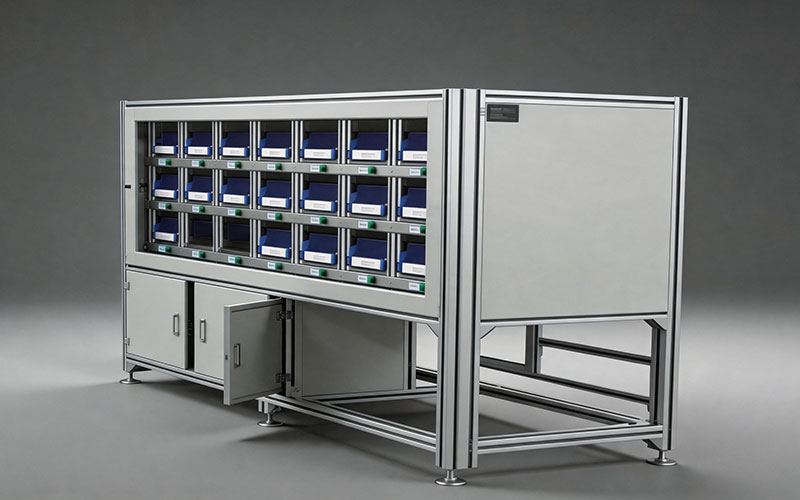

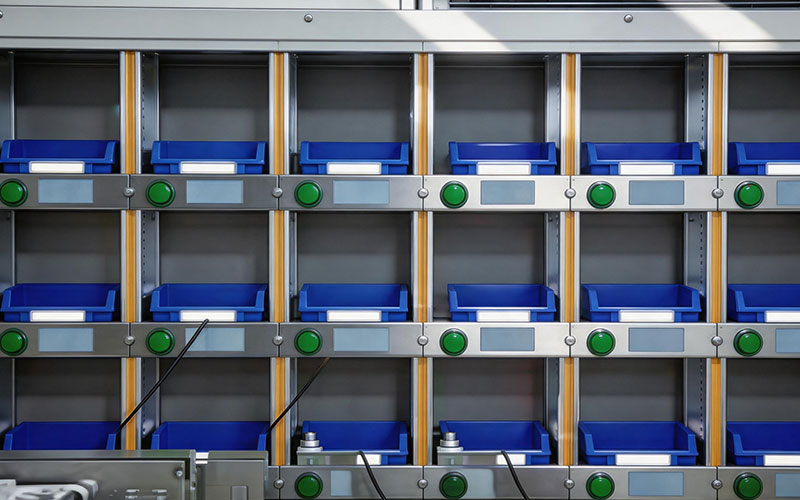

2. Indicator light prompts to pick the corresponding shim; audible-visual alarm for wrong picking
3. Re-measurement verification for picked shims to guarantee assembly quality
2. Indicator light prompts to pick the corresponding shim; audible-visual alarm for wrong picking
3. Re-measurement verification for picked shims to guarantee assembly quality
