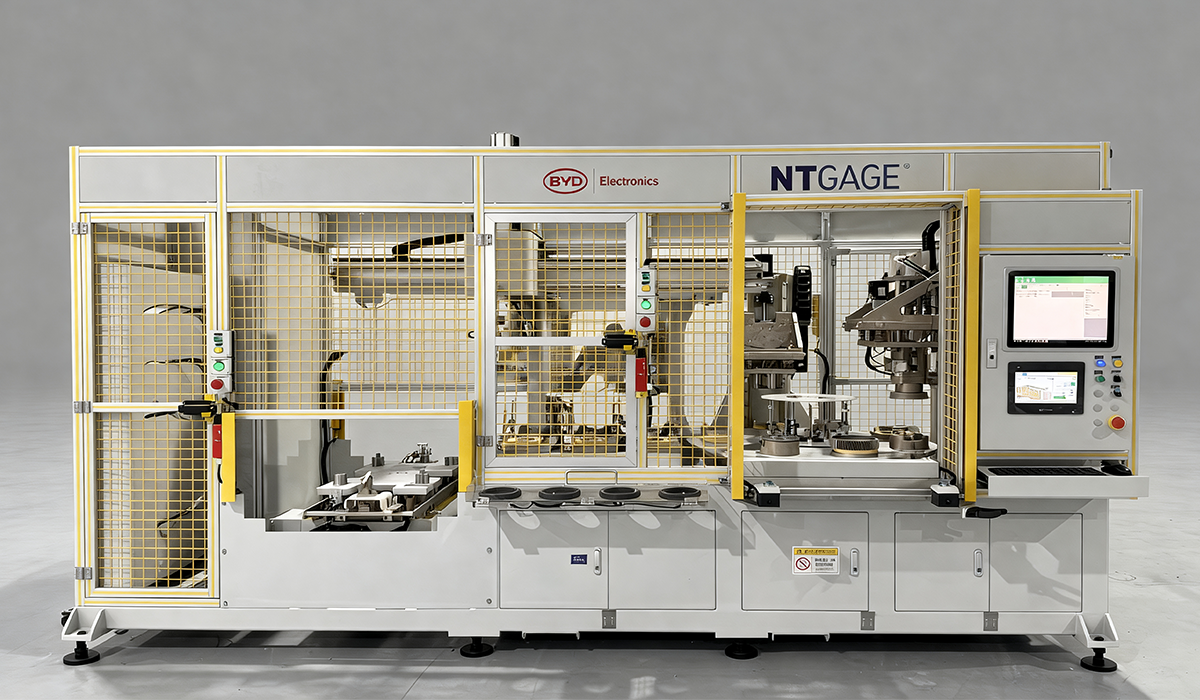

Differential housing Shim selection Measuring Machine
Test Items
half-shaft clearance
gear ring depth
gear ring depth
Product Features
1.Connect with assembly lines; manual feeding and automatic transfer to assembly production lines.

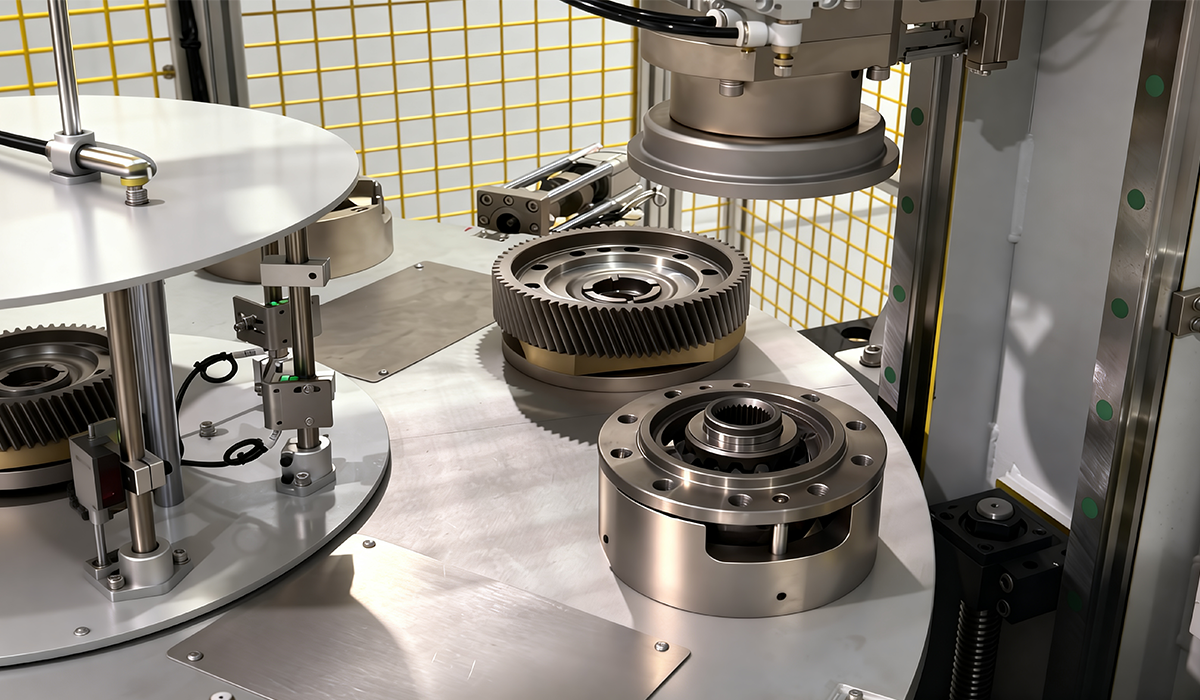

2.Adopt turret layout for differential-housing assembly clearance-testing station and main-reduction gear-ring depth-testing station. One-time feeding enables step-by-step measurement and clearance-value calculation.
3.Multi-point sensor measurement is applied for gear-ring depth to guarantee measurement accuracy.
4.Automatic OK/NG judgment: qualified parts flow onward; NG parts return to sorting station for shim re-selection.
5.Measurement data is bound to QR codes and uploaded to the assembly-line MES system.
2.Adopt turret layout for differential-housing assembly clearance-testing station and main-reduction gear-ring depth-testing station. One-time feeding enables step-by-step measurement and clearance-value calculation.
3.Multi-point sensor measurement is applied for gear-ring depth to guarantee measurement accuracy.
4.Automatic OK/NG judgment: qualified parts flow onward; NG parts return to sorting station for shim re-selection.
5.Measurement data is bound to QR codes and uploaded to the assembly-line MES system.
