Position tolerance & missing machining of threaded bottom holes
position tolerance of bolt through holes
center distance between bolt holes on two ends
spacing of bolt holes on the same side

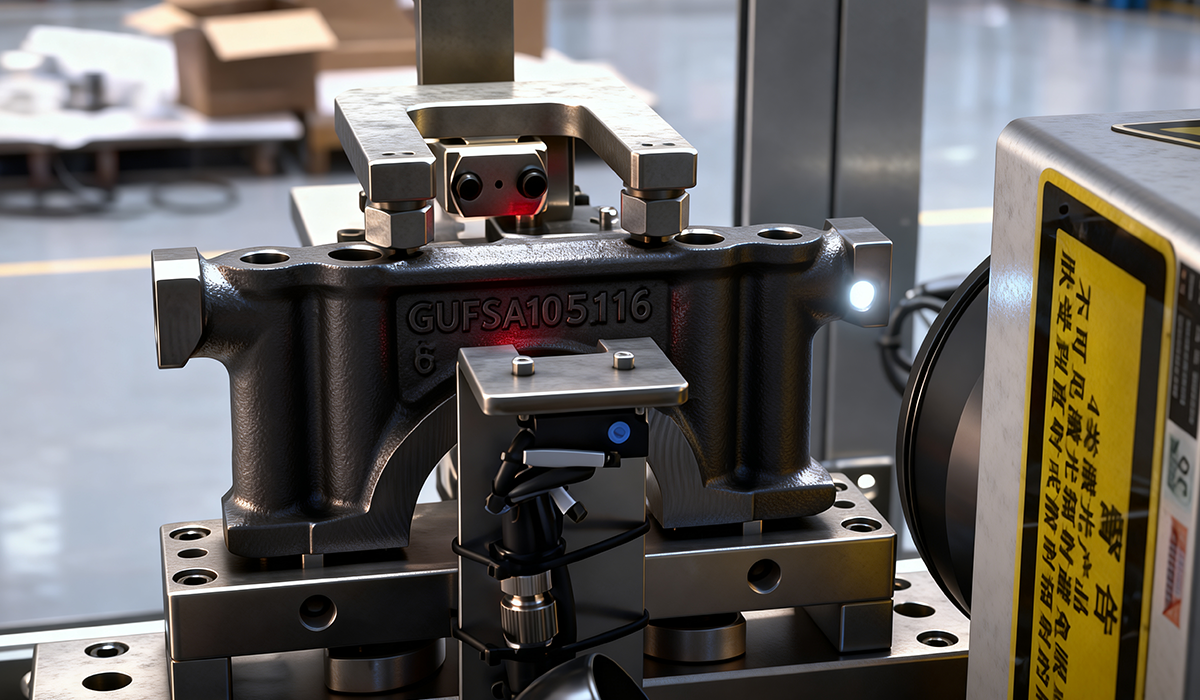

total height & wall thickness of bearing cap
diameter & position tolerance of crankshaft main bearing bore
perpendicularity of stop end face

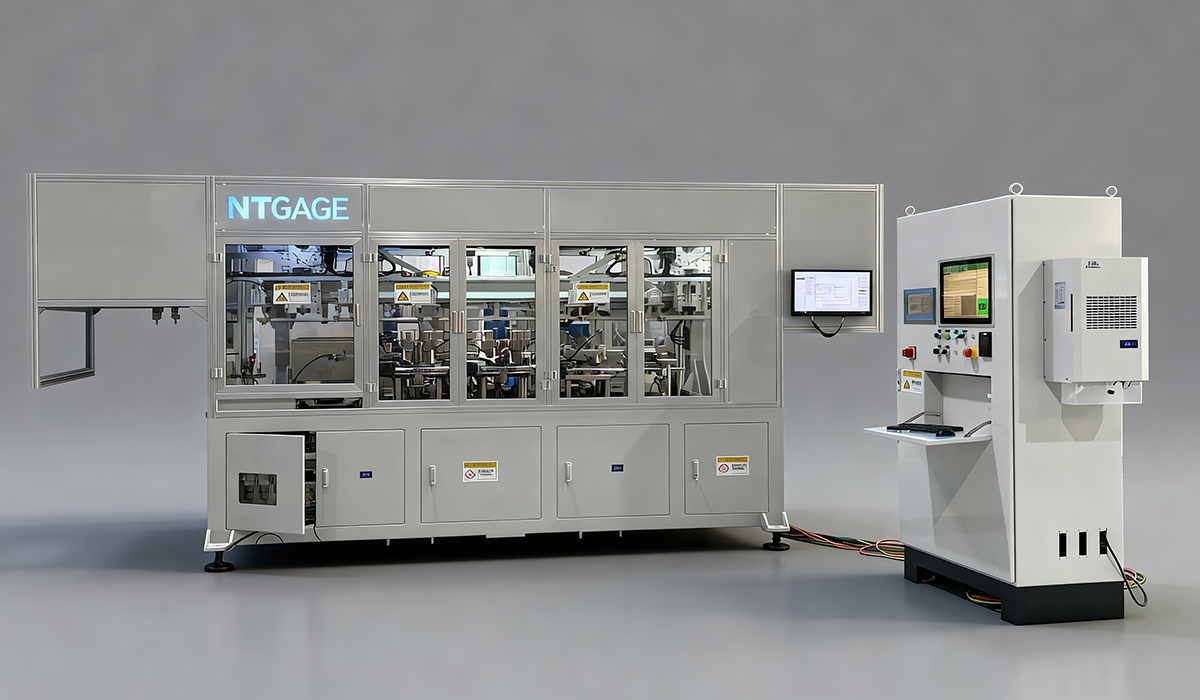

1.Connect with customer manipulators, blow and clean workpieces automatically before measurement
2.Multi-station configuration to match production tact of 11 seconds per piece
3.Equipped with vision system for QR code recognition and thread machining defect detection
